Status Updates - December 2, 2011

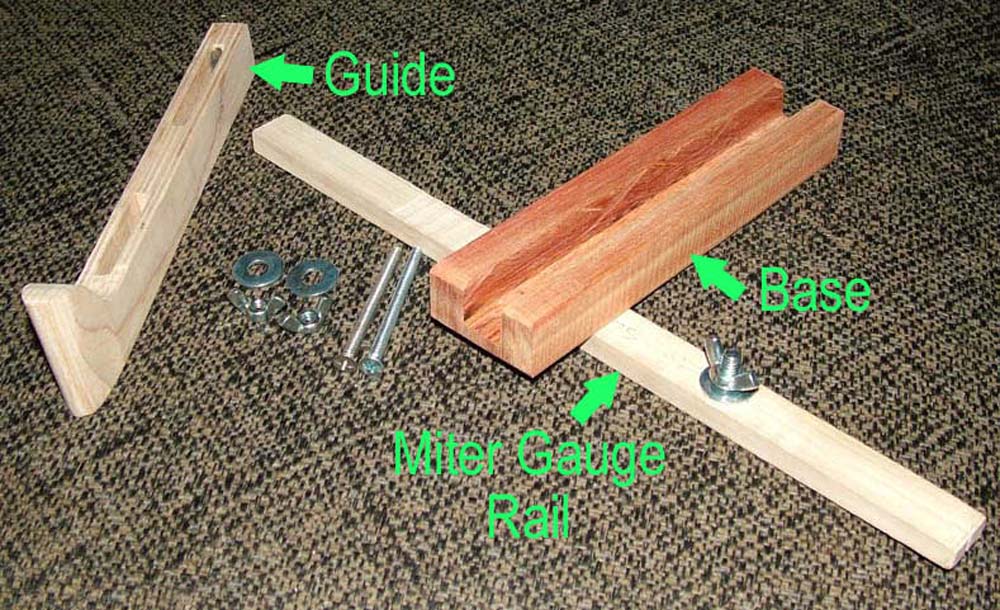

Today I built a "Resawing Guide". I got the idea from "FineWoodWorking.com". When I get ready to resaw the wood for my guitar neck, this little tool will make my life a little easier when I cut the wood on my bandsaw. The guide is made of three layers of 1/4" plywood. The miter gauge rail is poplar and the base is some hardwood I had laying around.

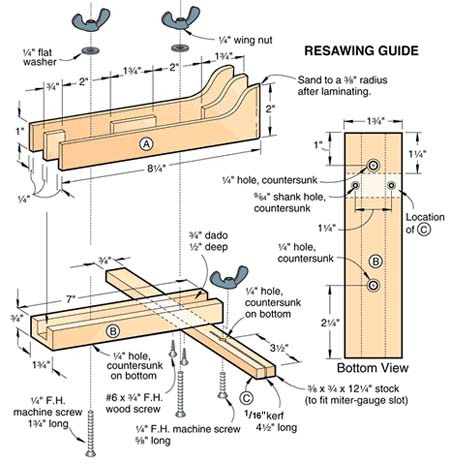

This drawing is from FineWoodWorking.com. Click on the photo for the Google Sketchup drawing.

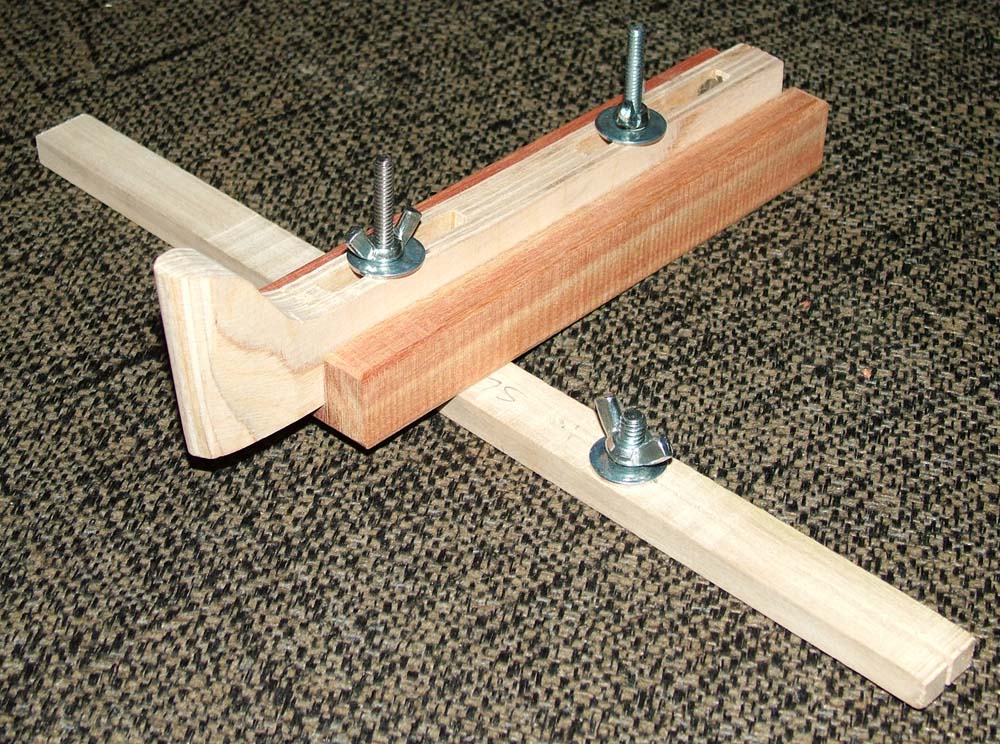

This handy little tool will help make it easier when I resaw the planks for my five piece guitar neck. It was very simple to make and took me a couple of hours to complete.
